deegee XFL IP65 Xenon Strobe Single Flash Beacon 230Vac White Base 133mm x 123mm dia. Red
This industrial xenon strobe beacon stands out for its intense light output and robust design. It features an ABS base and polycarbonate Fresnel dome lens. The base is available in White (standard), Black, or Red, while the lens can be chosen in Red, Amber, Green, Blue, Clear, or Yellow. Four flash rates are available through onboard switches. The standard 11 Joule model can be used with 12Vdc, 24Vdc, 115Vac, or 230Vac power supplies, and comes in Double-flash or Single-flash patterns. It is supplied as a complete boxed unit. Additionally, there are 5 Joule models for use with 10-100Vdc, 20-70Vac, or 100-130Vdc supplies.
Additional information
| Weight (kg) | 0.475 |
|---|---|
| Nominal Supply Voltage (V) | 230 |
| Voltage Min (V) | 196 |
| Voltage Max (V) | 264 |
| Supply Type | AC |
| Lens Colour | Red |
| Signal Colour | Red |
| Base Colour | White |
| Height (mm) | 133 |
| Diameter (mm) | 123 |
| Size (mm) | 133 x 123 dia. |
| IP Rating | IP65 |
| GTIN | 5060995743974 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 11 |
| Nominal Current Draw (A) | 0.11 |
| Light Source | Xenon |

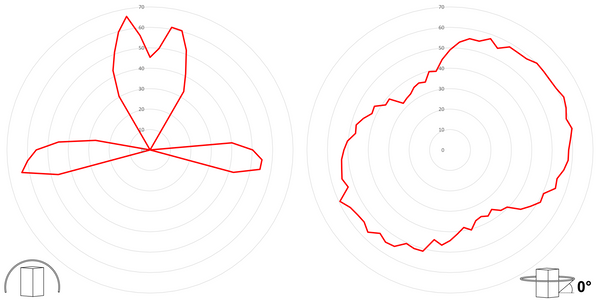

| Luminous Intensity (cd) | 67 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
