deegee XFH IP65 Xenon Strobe DH Beacon 24J 12Vuc White Base 225mm x 175mm dia. Green
This xenon strobe light is designed with a high-top profile for industrial, vehicle, and security applications. It features an ABS base and polycarbonate dome lens, available in White (standard) or Black, and with lenses in Red, Amber, Green, Blue, or Clear. The device includes onboard switches for four flash rate options. It is available in 11 Joule and 24 Joule models, suitable for use with 12Vuc, 24Vuc, 115Vac, or 230Vac supplies (uc = ac or dc), and offers Double-flash or Single-flash patterns.
Additional information
| Weight (kg) | 1.427 |
|---|---|
| Nominal Supply Voltage (V) | 12 |
| Voltage Min (V) | 11 |
| Voltage Max (V) | 14 |
| Supply Type | UC |
| Lens Colour | Green |
| Signal Colour | Green |
| Base Colour | White |
| Height (mm) | 225 |
| Diameter (mm) | 175 |
| Size (mm) | 225 x 175 dia. |
| IP Rating | IP65 |
| GTIN | 5060995743073 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 24 |
| Light Source | Xenon |

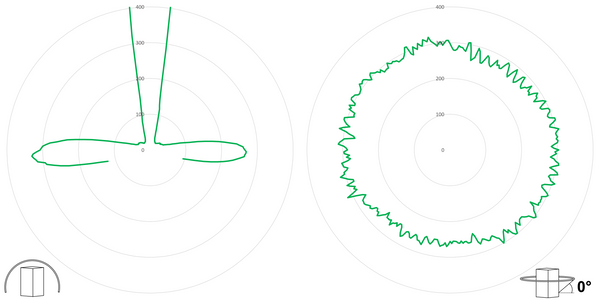

| Luminous Intensity (cd) | 320 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 2 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Nominal Current Draw (A) | 1.91 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
