deegee XFF IP65 Xenon Strobe Single Flash Beacon 115Vac 155mm x 155mm x 192mm Blue
A highly durable xenon beacon featuring a glass lens, made from AISI316 stainless steel with chemical-resistant seals and stainless steel fixings, designed for tough environments like paper manufacturing where acid-wash cleaning is standard. The clear glass outer lens comes with internal polycarbonate lenses in Red, Amber, Green, Blue, Yellow, or Clear. Onboard switches allow for four flash rate options. Available in 11 Joule models compatible with 12Vuc, 24Vuc, 115Vac, or 230Vac power (uc = ac or dc), with Double-flash or Single-flash patterns. Supplied as a boxed beacon, with 5 Joule models for 10-100Vdc (20-70Vac) and 100-130Vdc supplies.
Additional information
| Weight (kg) | 3.4 |
|---|---|
| Nominal Supply Voltage (V) | 115 |
| Voltage Min (V) | 98 |
| Voltage Max (V) | 132 |
| Supply Type | AC |
| Lens Colour | Blue |
| Signal Colour | Blue |
| Length (mm) | 155 |
| Width (mm) | 155 |
| Height (mm) | 192 |
| Size (mm) | 155 x 155 x 192 |
| IP Rating | IP65 |
| GTIN | 5060995742625 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 11 |
| Nominal Current Draw (A) | 0.16 |
| Light Source | Xenon |

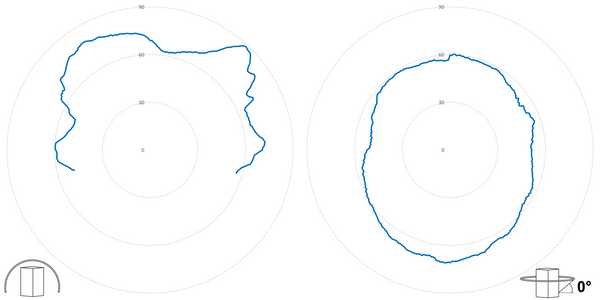

| Luminous Intensity (cd) | 70 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | Stainless Steel |
| Lens Material | Glass |
