deegee XFE IP65 Xenon Strobe Single Flash Beacon 12-70Vuc White Base 194mm x 146mm dia. Red
Featuring a traditional high-dome design, this xenon strobe warning device includes an ABS base and polycarbonate dome lens. Bases are offered in White (standard), Black, or Red, and lenses come in Red, Amber, Green, Blue, Yellow, or Clear. On-board switches allow selection from four flash rates. Available in standard 11 Joule models for 12Vuc, 24Vuc, 115Vac, or 230Vac supplies, with options for Double-flash (default) or Single-flash signals. Delivered as a complete boxed unit, including base assembly and colored dome lens. Additional 5 Joule models are suitable for 10-100Vdc (20-70Vac) and 100-130Vdc supplies.
Additional information
| Weight (kg) | 0.616 |
|---|---|
| Nominal Supply Voltage (V) | 12-70 |
| Voltage Min (V) | 11 |
| Voltage Max (V) | 70 |
| Supply Type | UC |
| Lens Colour | Red |
| Signal Colour | Red |
| Base Colour | White |
| Height (mm) | 194 |
| Diameter (mm) | 146 |
| Size (mm) | 194 x 146 dia. |
| IP Rating | IP65 |
| GTIN | 5060995742083 |
| Mounting method | Surface mounting |
| User Selectable Functions | 4 Flash Rates |
| Flash Energy (J) | 5 |
| Nominal Current Draw (A) | 0.35 |
| Light Source | Xenon |

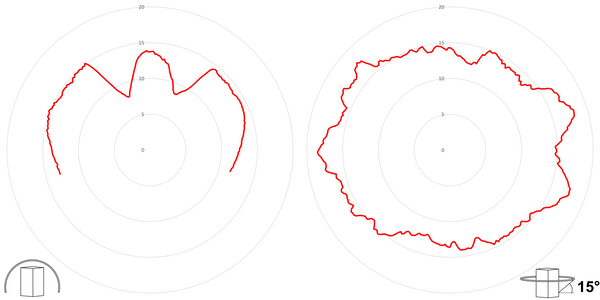

| Luminous Intensity (cd) | 20 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | 60 |
| Number of Flash Functions | 4 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
