deegee TPD IP65 Telephone Initiated Beacon White Base 102mm x 79mm dia. Blue
Ultra-low current LED Telephone Beacon driven entirely from incoming ring signal, eliminating the need for any external power source.
Circuitry is fixed to the base, with convenient access to the terminal block for wiring. Lenses, available in Red, Amber, Green, Blue, Clear, Yellow or Purple, are fitted to the bases by three stainless steel screws and a custom moulded gasket seal.
Additional information
| Weight (kg) | 0.157 |
|---|---|
| Voltage Min (V) | 35 |
| Voltage Max (V) | 90 |
| Supply Type | ac (15-60Hz) |
| Lens Colour | Blue |
| Signal Colour | Blue |
| Base Colour | White |
| Height (mm) | 102 |
| Diameter (mm) | 79 |
| Size (mm) | 102mm x 79mm dia. |
| IP Rating | IP65 |
| GTIN | 5060995747231 |
| Mounting method | Surface mounting |
| Nominal Current Draw (A) | 0.019 |
| Light Source | LED |

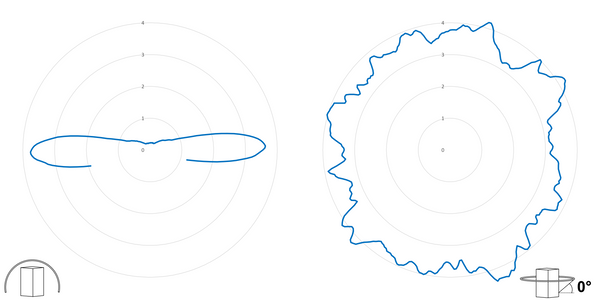

| Luminous Intensity (cd) | 4 |
| Temperature Limits (C) | -20 to +55 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Housing colour | White |
| Base Material | ABS |
| Lens Material | Polycarbonate |
