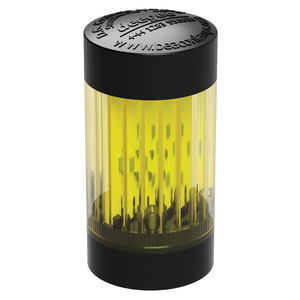

deegee STC IP65 LED Stack Light 230Vac Black Base 65mm x 32mm dia. Yellow

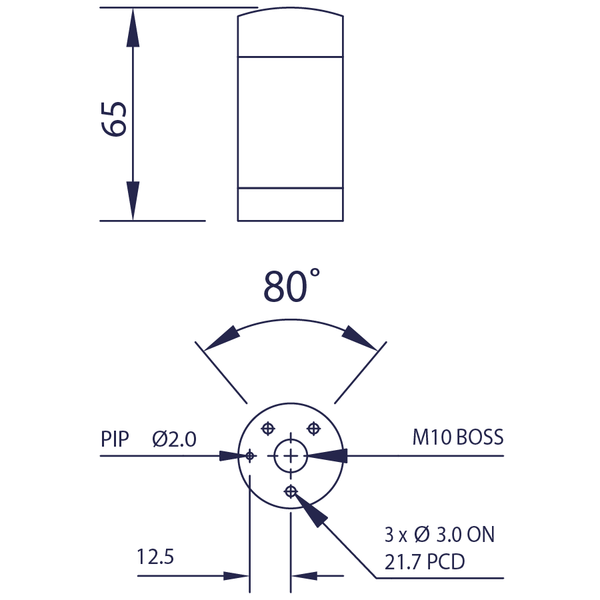

This LED micro-tower beacon operates statically and can be stacked from 1 to 5 units. It features polycarbonate materials for the base, cap, and lens, with lens colors available in Red, Amber, Green, Blue, Clear, or Yellow. It works with 24Vuc, 115Vac, or 230Vac supplies (ac or dc). The unit mounts through a single M10 hole, includes an optional anti-rotation spigot, and comes with pre-connected cables for installation.
Additional information
| Weight (kg) | 0.045 |
|---|---|
| Nominal Supply Voltage (V) | 230 |
| Voltage Min (V) | 196 |
| Voltage Max (V) | 264 |
| Supply Type | AC |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | Black |
| Height (mm) | 65 |
| Diameter (mm) | 32 |
| Size (mm) | 65mm x 32mm dia. |
| IP Rating | IP65 |
| GTIN | 5060995747156 |
| Mounting method | Surface mounting |
| Nominal Current Draw (A) | 0.018 |
| Light Source | LED |
| Luminous Intensity (cd) | 6 |
| Temperature Limits (C) | -20 to +55 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Factory Set Flashing Frequency (FPM) | Static |
| Base Material | Polycarbonate |
| Lens Material | Polycarbonate |
