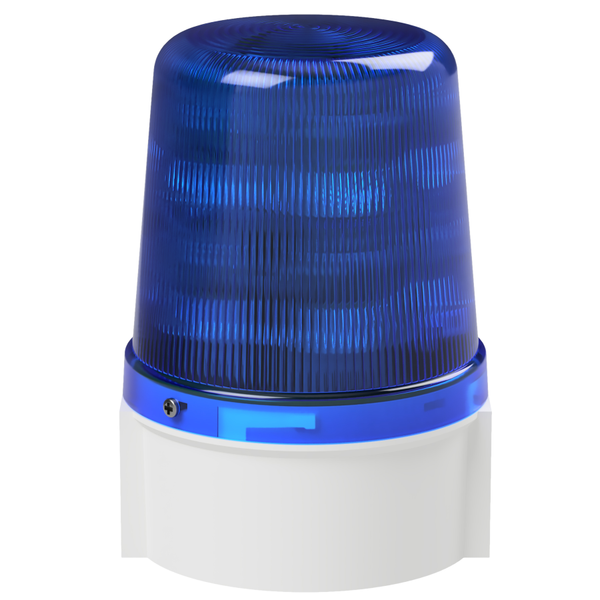

deegee Series B IP66 Ultra Power LED Strobe Beacon 12-24Vdc with White Base 135mm x 94mm ⌀ Blue

Our ultra-power LED Strobe Beacon Lamps utilize the latest LED technology and state-of-the-art optics to provide a low-power, long-lasting visual warning signal that replicates the effect of a traditional Xenon Strobe. The beacon is multi-functional, offering 16 modes: Static (non-flashing), Standard Pulse (120fpm at 2Hz), Fade-pulse (30 & 60 fpm), Strobe Single Flash (SH) at 30, 60 & 90 fpm, Strobe Double Flash (DH) at 30, 60 & 90 fpm, Strobe Triple Flash (TH) at 30, 60 & 90 fpm, and Strobe Quad Flash (QH) at 60 fpm. Units from the Series B and C ranges can be linked together, including the IAS-C Sounder, for an integrated system. The circuitry is mounted on the base with easy access for wiring. Lenses are attached with a bayonet fitting, O-ring seal, and secured with a grub screw. All connections are sealed with O-rings, with no external fixings.

SKU: 0553240244 Category:

Additional information

Nominal Supply Voltage (V)

12-24

Voltage Min (V)

11

Voltage Max (V)

28

Lens Colour

Blue

Signal Colour

Blue

Base Colour

White

Height (mm)

135

Diameter (mm)

94

Size (mm)

135mm x 94mm ⌀

IP Rating

IP66

Mounting method

Surface mounting

User Selectable Functions

16-Function

Light Source

LED

Number of Flash Functions

16

CE Approved

Yes

Temperature Limits (C)

-20 to +55

Base Material

ABS

Lens Material

Polycarbonate

Country of origin

GB

RoHS

RoHS3 (EU DIRECTIVE 2015/863) compliant

RoHS Last Verified Date

1st March 2025

SVHC

No SVHC present

SVHC Candidate List Date

27th June 2024

Order Unit

1

MOQ

1

Quantity Interval

1

Status

Active

Commodity Code

85318070

Weight (kg)

0.451

Supply Type

DC

Nominal Current Draw (A)

0.309-0.73

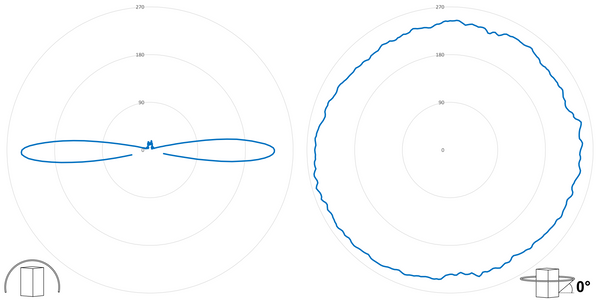

Luminous Intensity (cd)

270 (Strobe)

Factory Set Flashing Frequency (FPM)

60

Fuse (A)

1

Fuse Type

TD

Fuse (Internal or External)

External

GTIN

5060995749723

Optics

Horizontal Lens
