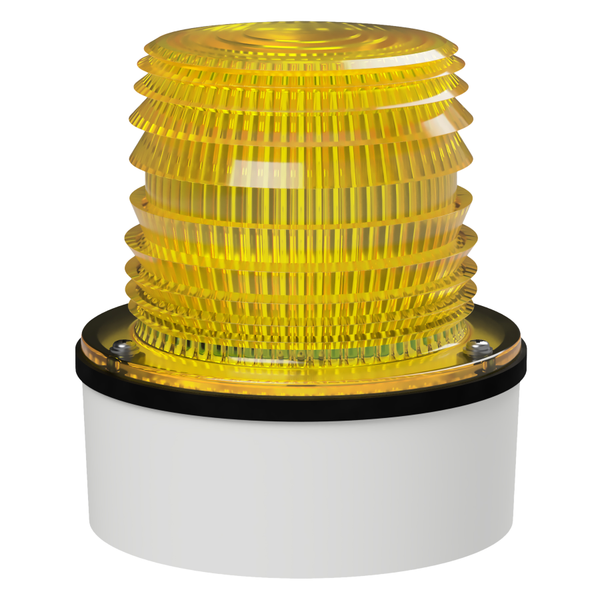

deegee PSL IP65 Pulsed Eco-LED Beacon 12-36Vdc White Base 133mm x 123mm dia. Yellow
Our Pulsed LED Beacon Lamps use advanced LED technology to deliver a low-power, long-lasting visual warning signal. The dual-function LED beacon offers two modes: Static (non-flashing) and Standard Pulse (120 flashes per minute or 2Hz). The circuitry is securely attached to the base, providing easy access to the terminal block for wiring. The lenses are mounted onto the base using three stainless steel screws.
Additional information
| Weight (kg) | 0.3270 |
|---|---|
| Nominal Supply Voltage (V) | 12-36 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 40 |
| Supply Type | DC |
| Lens Colour | Yellow |
| Signal Colour | Yellow |
| Base Colour | White |
| Height (mm) | 133 |
| Diameter (mm) | 123 |
| Size (mm) | 133mm x 123mm dia. |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed, Static |
| Nominal Current Draw (A) | 0.086 |
| Light Source | LED |

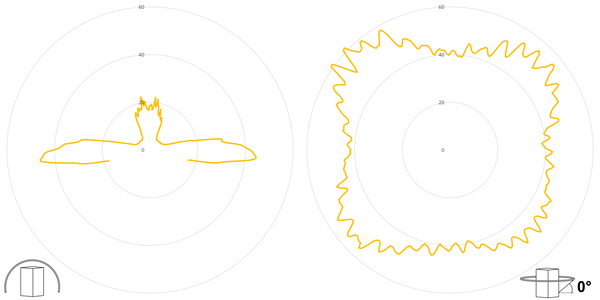

| Luminous Intensity (cd) | 62 |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 2 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302662 |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
