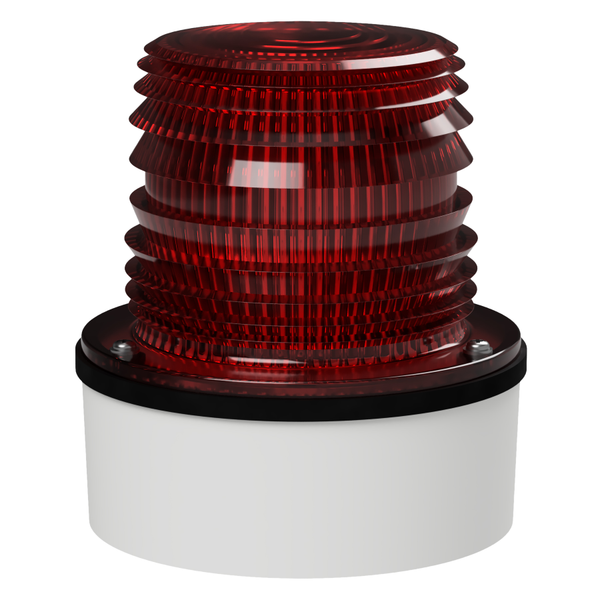

deegee PSL IP65 Pulsed Eco-LED Beacon 12-36Vdc White Base 133mm x 123mm dia. Red
Our Pulsed LED Beacon Lamps utilise latest technology LED’s to provide a generally low power long life visual warning signal. Dual-function LED Beacon with 2 operating modes. Static – non-flashing and Standard Pulse – 120fpm (2Hz). Circuitry is fixed to the base, with convenient access to the terminal block for wiring. Lenses are fitted to the bases by three stainless steel screws.
Additional information
| Weight (kg) | 0.3270 |
|---|---|
| Nominal Supply Voltage (V) | 12-36 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 40 |
| Supply Type | DC |
| Lens Colour | Red |
| Signal Colour | Red |
| Base Colour | White |
| Height (mm) | 133 |
| Diameter (mm) | 123 |
| Size (mm) | 133mm x 123mm dia. |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed, Static |
| Nominal Current Draw (A) | 0.086 |
| Light Source | LED |
| Luminous Intensity (cd) | 9 |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 2 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302617 |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
