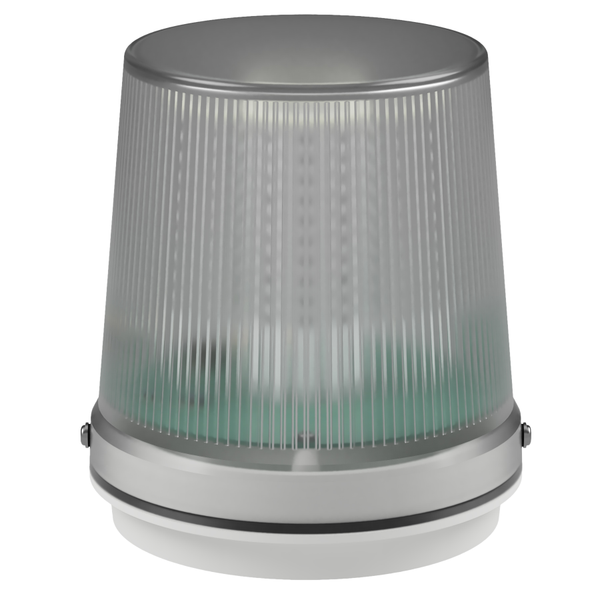

deegee PSK IP65 Pulsed LED Beacon 115-230Vuc White Base 185mm x 165mm dia. Clear
Featuring advanced LED technology, our Pulsed LED Beacon Lamps provide a low-energy, long-lasting visual warning signal. The multi-function beacon includes eight operating modes: Static (non-flashing), Standard Pulse (120 flashes per minute, 2Hz), Slow Pulse (60 flashes per minute, 1Hz), Fast Pulse (240 flashes per minute, 4Hz), Triple Flash (three pulses repeating twice per second), Random Flash (irregular pulses repeating once per second), Strobe (one pulse per second, 1Hz), and Revolving (simulated rotation at 120rpm).
Additional information
| Weight (kg) | 0.704 |
|---|---|
| Nominal Supply Voltage (V) | 115-230 |
| Voltage Min (V) | 98 |
| Voltage Max (V) | 264 |
| Supply Type | UC |
| Lens Colour | Clear |
| Signal Colour | Clear |
| Base Colour | White |
| Height (mm) | 185 |
| Diameter (mm) | 165 |
| Size (mm) | 185mm x 165mm dia. |
| IP Rating | IP65 |
| Mounting method | Surface mounting |
| User Selectable Functions | 8-Function |
| Nominal Current Draw (A) | 0.103-0.166 |
| Light Source | LED |
| Luminous Intensity (cd) | 107 |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 8 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302600 |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
