deegee PSE IP65 Flashing LED Beacon 24Vdc White Base 194mm x 146mm dia. Green
Our Pulsed LED Beacon Lamps incorporate advanced LED technology to provide a low-power, long-lasting visual warning. The multi-function Rotating/Pulsed/Static LED beacon includes eight modes: Static (non-flashing), Standard Pulse (120fpm), Slow Pulse (60fpm), Fast Pulse (240fpm), Triple Flash (three flashes per second), Random Flash (random pulses once per second), Strobe (1 pulse per second), and Revolving (simulated rotation at 120rpm). The circuitry is housed beneath the dome lens gasket for easy wiring access, with the lens secured by three stainless steel screws and a custom-molded gasket. The beacon is supplied in a complete boxed package with base and coloured dome lens.
Additional information
| Weight (kg) | 0.563 |
|---|---|
| Nominal Supply Voltage (V) | 24 |
| Voltage Min (V) | 21 |
| Voltage Max (V) | 27 |
| Supply Type | DC |
| Lens Colour | Green |
| Signal Colour | Green |
| Base Colour | White |
| Height (mm) | 194 |
| Diameter (mm) | 146 |
| Size (mm) | 194 x 146 dia. |
| IP Rating | IP65 |
| GTIN | 5060995744315 |
| Mounting method | Surface mounting |
| User Selectable Functions | 8-Function |
| Nominal Current Draw (A) | 0.151 |
| Light Source | LED |

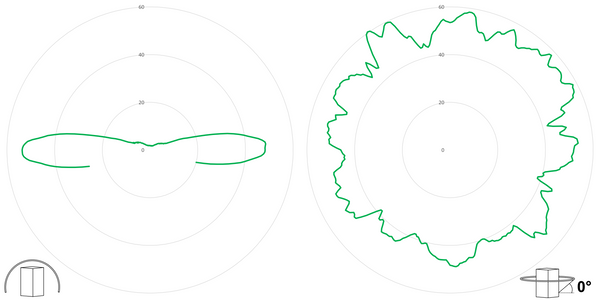

| Luminous Intensity (cd) | 60 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85319000 |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 8 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 1 |
| Fuse Type | TD |
| Fuse (Internal or External) | Internal |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
