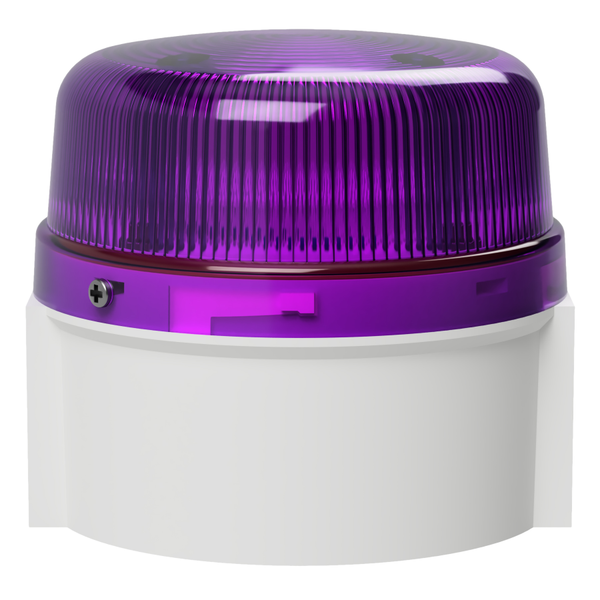

deegee PSC IP69K High-Intensity LED Beacon 12-36Vdc White Base 85mm x 94mm dia. Purple
Our Pulsed LED Beacon Lamps, using the latest LED technology, offer a low-power, long-lasting visual warning signal. This multi-function beacon provides four operating modes: Static (non-flashing), Standard Pulse (120fpm or 2Hz), Triple Flash, and Random Flash. These units can be linked together, including the compatible IAS-C Sounder, to create a complete signaling system. The circuitry is mounted securely to the base, with convenient access for wiring. Lenses are attached using a bayonet fitting and O-ring seal, held in place with a single grub screw, ensuring no external fixings, and all enclosure connections are protected by O-rings.
Additional information
| Weight (kg) | 0.1720 |
|---|---|
| Nominal Supply Voltage (V) | 12-36 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 40 |
| Supply Type | DC |
| Lens Colour | Purple |
| Signal Colour | Purple |
| Base Colour | White |
| Height (mm) | 85 |
| Diameter (mm) | 94 |
| Size (mm) | 85mm x 94mm dia. |
| IP Rating | IP69K |
| Mounting method | Surface mounting |
| User Selectable Functions | Pulsed, Static, Triple, Random |
| Nominal Current Draw (A) | 0.111 |
| Light Source | LED |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 4 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS |
| Lens Material | Polycarbonate |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711302792 |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
