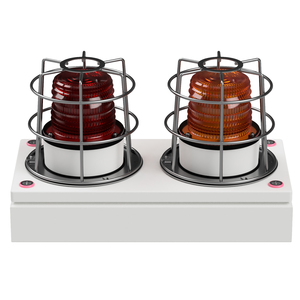

deegee DXG/2040 IP65 16J SH Xenon Duplex Beacon 230V Steel Base and Guard 400mm x 200mm x 273mm R/W

These Bi-stable Duplex Flashing Beacons create their warning signal by alternating Xenon Gas-filled tube discharges or coloured LED flashes, powered by a continuous-use solid-state exciter. The flashing of different colours for each element produces a strong and distinct visual hazard warning. The flash-head units are fitted with UV-stabilized polycarbonate lenses in Red, Amber, Green, Blue, and Clear. The ‘L’ models come with Fresnel lenses for concentrated, long-range light. Available in Dual-flash (DH) and Single-flash (SH) versions. The LED version uses a clear lens with alternate-coloured LEDs like Red/Blue or Red/White.

SKU: 5216131123012 Category:

Additional information

Nominal Supply Voltage (V)

230

Voltage Min (V)

196

Voltage Max (V)

265

Supply Type

AC

Lens Colour

Red / Clear

Signal Colour

Red / White

Base Colour

White

Length (mm)

400

Width (mm)

200

Height (mm)

273

Size (mm)

400mm x 200mm x 273mm

IP Rating

IP65

Light Source

Xenon

GTIN

5056711301955

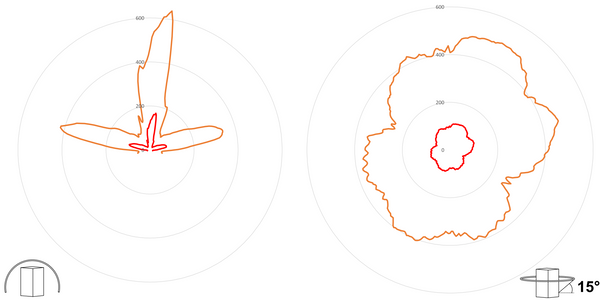

Luminous Intensity (cd)

115 (Red) / 500 (Amber)

Order Unit

1

MOQ

1

Quantity Interval

1

Commodity Code

85318070

Fuse (A)

0.5

Fuse Type

QB

Fuse (Internal or External)

Internal

Weight (kg)

5.4

User Selectable Functions

30, 45, 65, 90 FPM

Flash Energy (J)

16

Factory Set Flashing Frequency (FPM)

65

Number of Flash Functions

1

Temperature Limits (C)

-20 to +55

Base Material

Steel

Lens Material

Polycarbonate

Country of origin

GB

Status

Active

RoHS

RoHS3 (EU DIRECTIVE 2015/863) compliant

RoHS Last Verified Date

8th August 2024

SVHC

No SVHC present

SVHC Candidate List Date

27th June 2024

Nominal Current Draw (A)

0.199

Number of Indicators

2
