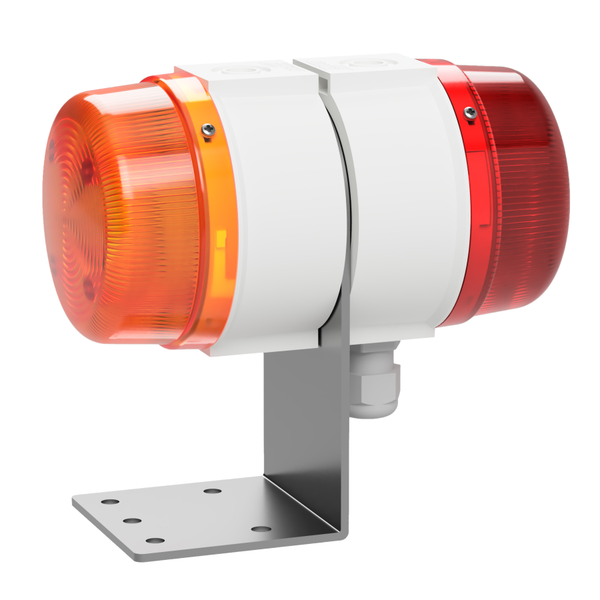

deegee Dual back-to-back IP69K Pulsed LED Beacon 12-36Vdc White Base Red/Amber
Our Pulsed LED Traffic Barrier Beacons utilise latest technology LED’s to provide a generally low power, long life visual warning signal.
Ideal for mounting onto traffic barrier, for example Car Park or Toll Booth applications.
Dual-function Pulsed/Static Dual Colour LED Beacon – Standard Pulse – 120fpm (2Hz) and Static (non-flashing) modes.
Internal DIP switches allow “Flashing” mode to be pre-set to “Pulsed” or “Static” for each colour.
Additional control input available to “dim” each colour for night-time use.
Additional information
| Weight (kg) | 0.696 |
|---|---|
| Nominal Supply Voltage (V) | 12-36 |
| Voltage Min (V) | 10 |
| Voltage Max (V) | 40 |
| Supply Type | DC |
| Lens Colour | Red/Amber |
| Signal Colour | Red/Amber |
| Base Colour | White/Stainless |

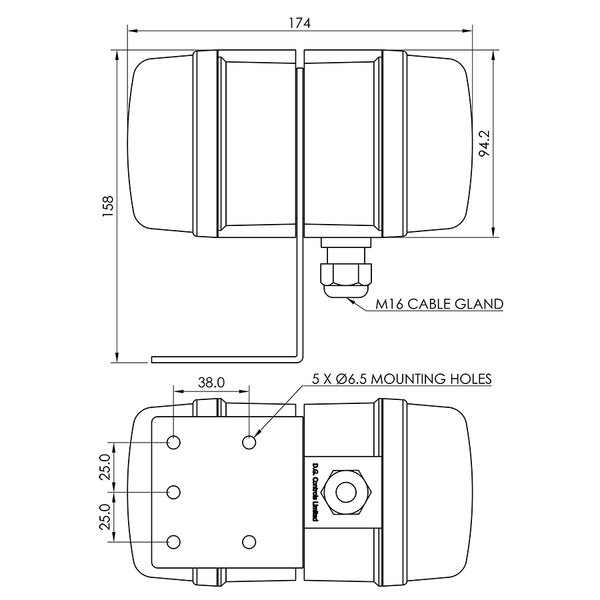

| Length (mm) | 158 |
| Width (mm) | 94 |
| Height (mm) | 174 |
| Size (mm) | 158 x 94 x 174 |
| IP Rating | IP69K |
| Mounting method | Surface Mounting (via attached bracket) |
| User Selectable Functions | Static/Pulsed (Dimmable) |
| Housing colour | White |
| Nominal Current Draw (A) | 0.105-0.209 |
| Light Source | LED |
| Number of Indicators | 2 |
| Indicator Diameter (mm) | 94 |

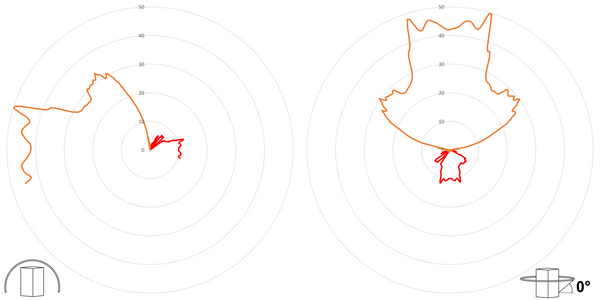

| Luminous Intensity (cd) | 12 (Red) / 50 (Amber) |
| Factory Set Flashing Frequency (FPM) | 120 |
| Number of Flash Functions | 2 |
| CE Approved | Yes |
| Temperature Limits (C) | -20 to +55 |
| Base Material | ABS / Stainless Steel |
| Lens Material | Polycarbonate / Stainless Steel |
| Fuse (A) | 0.5 |
| Fuse Type | TD |
| Fuse (Internal or External) | External |
| Country of origin | GB |
| RoHS | RoHS3 (EU DIRECTIVE 2015/863) compliant |
| RoHS Last Verified Date | 8th August 2024 |
| SVHC | No SVHC present |
| SVHC Candidate List Date | 27th June 2024 |
| Order Unit | 1 |
| MOQ | 1 |
| Quantity Interval | 1 |
| Status | Active |
| Commodity Code | 85318070 |
| GTIN | 5056711303713 |
